Light Transmitting Smoke & Heat Vents

Standard & UL 793 Certified Options

CrystaLite's Smoke and Heat Vents allow for the release of rising heat, smoke, and other harmful gases during the event of a fire. Smoke vents are a vital aid for firefighters extinguishing a building fire - and greatly improves visibility during and after a fire, which is crucial for search and rescue.

Framing members are made with aircraft grade 6063-T5 aluminum with welded corners on internal and external framing members which provides maximum durability and a weather tight enclosure - and consists of all stainless steel components for superior corrosion resistance.

Mounting Options

  • Curb Mount - Standard
  • Self-Flashing Insulated Curbs - Available
  • Fall Protection Safety Grids - Available

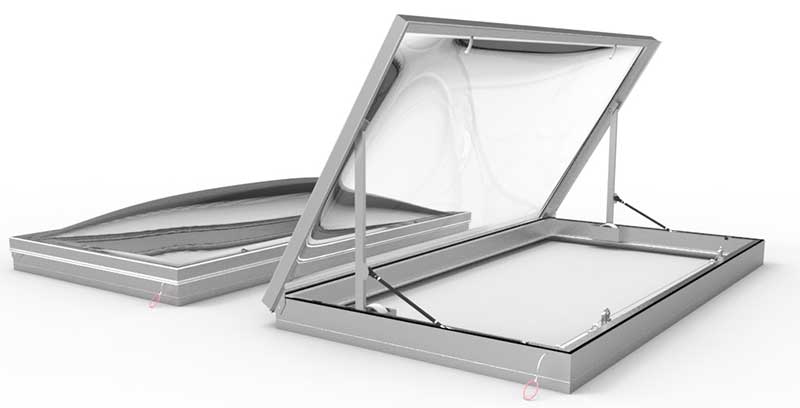

Standard Smoke Vents

Single Lid

  • UL 33 Listed fusible links. Available in 135, 165, 212, 350, 360, 370 and 386 degrees F.
  • Exterior manual release lanyard included.
  • Interior release lanyards are also available upon request.
  • Interior fall protection screens available.
  • Dynamic (Impact) Load Test : 800 lbs
  • Static Load Test : 1,038 lbs
  • Single Lid - Double Dome Glazing

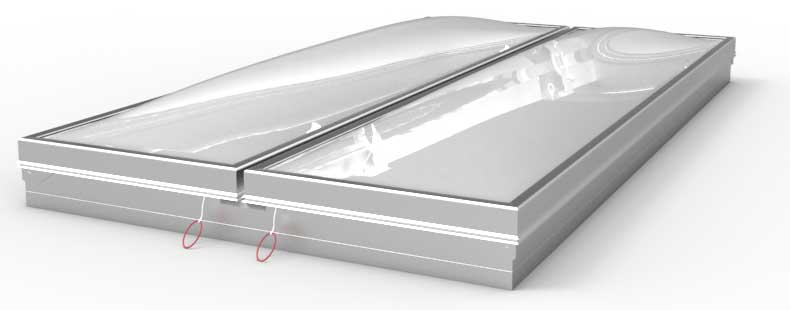

UL 793 Certified Smoke Vents

Double Lid

  • Listed and Certified to UL 793
    • 250 full stroke cycle testing without damage
    • 155 mph (60 psf) wind uplift load - 5 time cycle without damage
    • Operates with additional 184 lb uniform static snow load
    • Undamaged after dynamic 100 lb. drop bag impact from a height of 4 feet.
    • Class 30 and Class 60 roof system rating
  • UL 33 Listed fusible links. Available in 135, 165, 212, 350, 360, 370 and 386 degrees F.
  • Exterior manual release lanyard included.
  • Interior release lanyards are also available upon request.
  • Interior fall protection screens available.
  • Dynamic (Impact) Load Test : 800 lbs
  • Static Load Test : 1,038 lbs
  • Double Leaf Lid - Double Dome Glazing

Double Dome Glazing

Copolyester Outer Dome complies with the following:
  • Rate of Burn, per ASTM D 635: CC1 classification
  • ICC-ES listings as CC1 approved plastic complying with Section 2606.4 of the IBC
  • ANSI Z97.1 Safety Glazing Requirements
  • Miami-Dade County Product Notice of Acceptance-Plastics
  • Light-transmitting plastic in accordance with Section 2608 of the IBC
  • Weathering data in accordance to ICC-ES AC16
Inner Dome complies with the following:
  • ICC-ES listings as CC2 approved plastic complying with Section 2606.4 of the IBC
  • ANSI Z97.1 Safety Glazing Requirements
  • Underwrites Laboratories (UL) listings as UL 94HB and UL746 Compliant
  • Miami-Dade County Product Notice of Acceptance-Plastics
  • ASTM D-4802 B-1 Plastics

NFRC - Energy Performance Properties

Tested in accordance to ASTM C 1363 per NFRC requirements, NFRC 201 procedures, and ASTM E 972 / ASTM E 1084.

Plastic Double Glazing U-Factor SHGC VT
Clear / Clear 0.60 0.75 0.77
White / Clear 0.60 0.52 0.43
